Engine And Trans Installed

Dale L. — Posted on The MG Experience
Tuesday October 15, 2019 9:57 AM

I finally got the rebuilt motor and O/D Trans installed . Started running all new Stainless Steel lines for Fuel, & Brakes. Trying to get it done for March British Motoring Show in New Orleans.

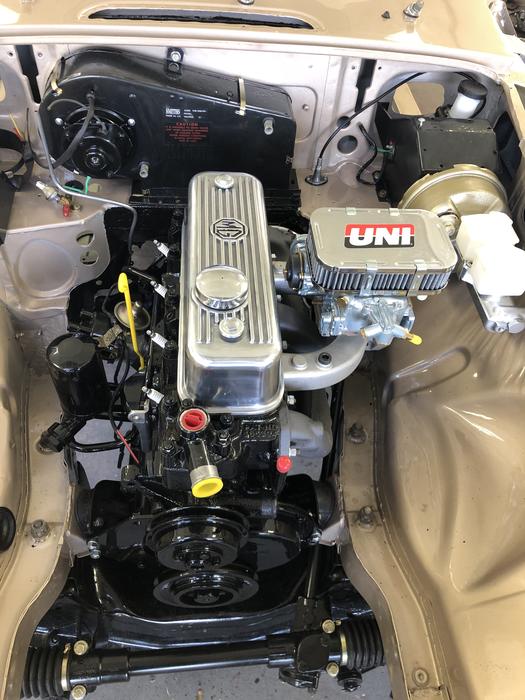

Engine FV

Engine LSV

Engine RSV

Member Comments on Journal Entry: Engine And Trans Installed ↵

No comments have been posted yet...

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Motor And O/D Trans Rebuild

Dale L. — Posted on The MG Experience
Thursday October 10, 2019 11:02 AM

Picked up the Motor and transmission ( Blue Label) from BMC Restorations in Kiln, Ms . New performance rebuild with Lucas 25D distributor, Weber 32/36 Intake and Mowog Exhaust manifold.
Added a custom performance cam as well. Ready to drop in .

Engine Rebuild 1

Engine Rebuild 3

Engine Rebuild 2

Member Comments on Journal Entry: Motor And O/D Trans Rebuild ↵

No comments have been posted yet...

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Painting Fender Bolts And Washers, Etc.

Dale L. — Posted on The MG Experience
Wednesday July 10, 2019 2:12 PM

I have found a way to paint the bolts and flat washers in order to re-assemble the parts with original bolts while car is in pieces. I mount the bolts onto a plastic cardboard and the flat washers on pegboard with plastic anchors. Also did some powder-coating on parts.

F OverflowTank

Fender Washers 1

Fender Washers 2

Fender Bolts

Member Comments on Journal Entry: Painting Fender Bolts And Washers, Etc. ↵

2019-07-17 13:19:57 # 58205

Comment by Eric Pfiffner

That's a slick idea with the pegboard and anchors. Also good to reuse the original hardware, I bought fender mounting kits and they are not like original at all in my opinion.

2019-07-17 14:52:25 # 58207

Comment by Dale L.

Yes Eric, I wanted the ORIGINAL bolts and washers, but when you paint it in pieces you have to find a way to paint the bolts and washers and not mar the finish when tightening. I use a Metric socket so it is a bit larger with a silicon tape over the heads. .As you saw the bolts were on cardboard with aluminum foils tape. It holds up better to the paint and primers and I do the same for powder-coating. The aluminum is my ground conductor connecting all parts to the grid. Slick Idea I came up with after trying to use jumpers on every oneThe pegboard and anchors I came up with to get paint over more of the washers and not have to peal them off when dry. The screw in the center and anchors can be re-used.. Good Luck with yours. I have a long way to go before I am done with this one.

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Finally Got Some Paint On The Shell. Champagne Metallic

Dale L. — Posted on The MG Experience
Wednesday July 10, 2019 2:06 PM

After 3 years I finally have the body painted. It's beautiful in this Champagne Metallic. Can't wait to start re-assembly. Will try to get the suspension on this weekend if the weather holds out. Once it's a rolling chassis I can start doing the details.

RFrontFender

RRearQuarter

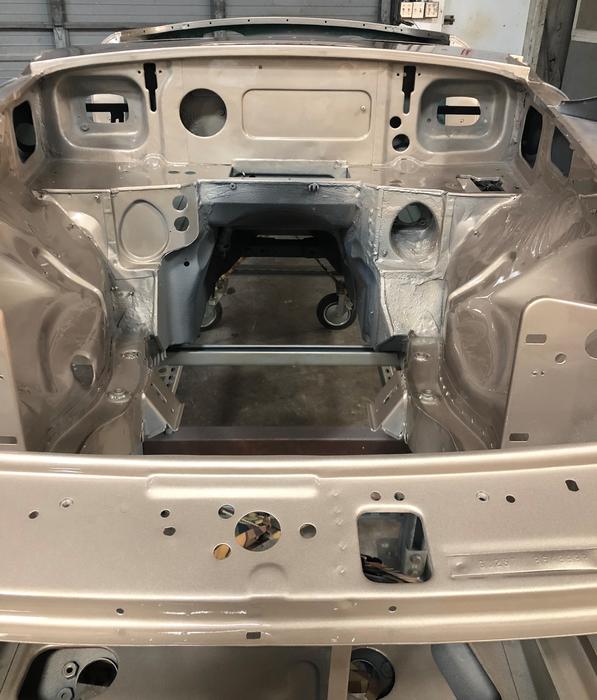

EngineBay

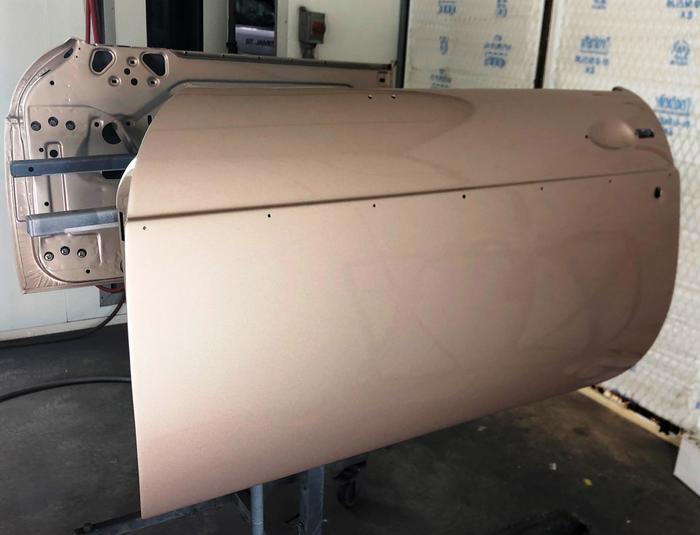

LDriverDoor

Member Comments on Journal Entry: Finally Got Some Paint On The Shell. Champagne Metallic ↵

2019-07-17 13:16:51 # 58204

Comment by Eric Pfiffner

That looks beautiful, smooth as glass! I'm setting my garage up to paint mine soon.

2019-07-17 14:41:26 # 58206

Comment by William Milholen

Just outstanding!

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Engine And Trans Off To Be Rebuilt

Dale L. — Posted on The MG Experience
Friday March 20, 2015 9:37 AM

I dropped off my engine to Peter Braun (Kiln, MS.) for a complete rebuild. It was fine but not enough horses under the bonnet.
Adding forged pistons with higher compression, Aluminum head with hardened seats and stainless valves, matching camshaft, etc.
O/D Trans will be checked and rebuilt if needed along with the O/D unit. Once it is all complete with new water pump, starter,clutch kit etc. it should run like a new car should. Hopefully I can add an oil cooler and new AC compressor with aluminum radiator and dual fans to keep it running cool on those hot southern days.
Though I will have about 20K invested into this car I know it is not worth that much but it's a gift for my wife which makes it PRICELESS !

Heat Shield redone and ready to install

Member Comments on Journal Entry: Engine And Trans Off To Be Rebuilt ↵

2019-04-25 11:17:10 # 56518

Comment by Butch Ammons

Pete is great. He built the 1380 in my 67 Austin Mini.

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Sandblasting Complete, Now The Fun Begins

Dale L. — Posted on The MG Experience
Monday February 16, 2015 7:27 AM

Finally finished sandblasting the doors, fenders, rear axle and front suspension. Soon the etch primer and epoxy primer will be done and then the fun of sanding and blocking begins. Stay tuned for how a Big Budget build is done.

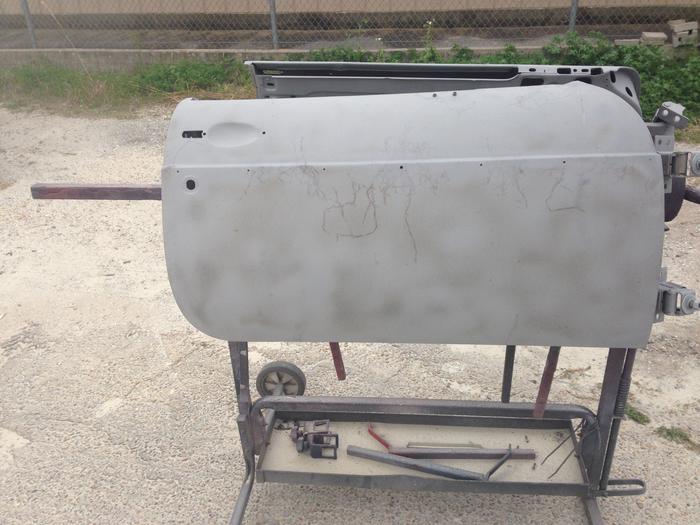

Sandblasted Doors

Sandblasted Fenders

Rear axle

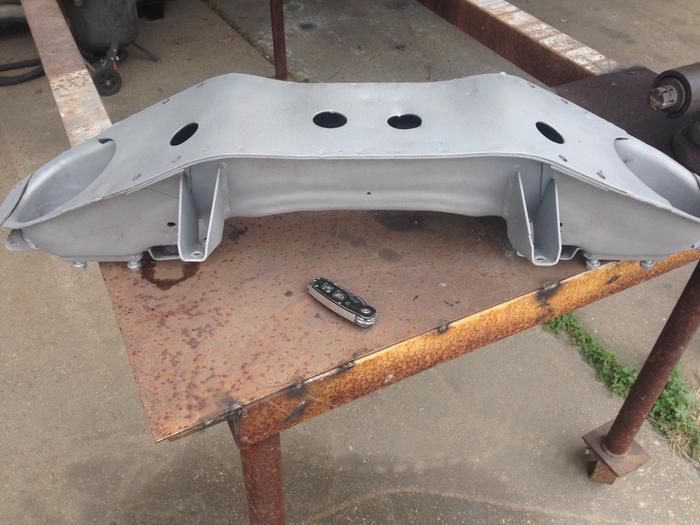

Front Crossmember

Front A Arms

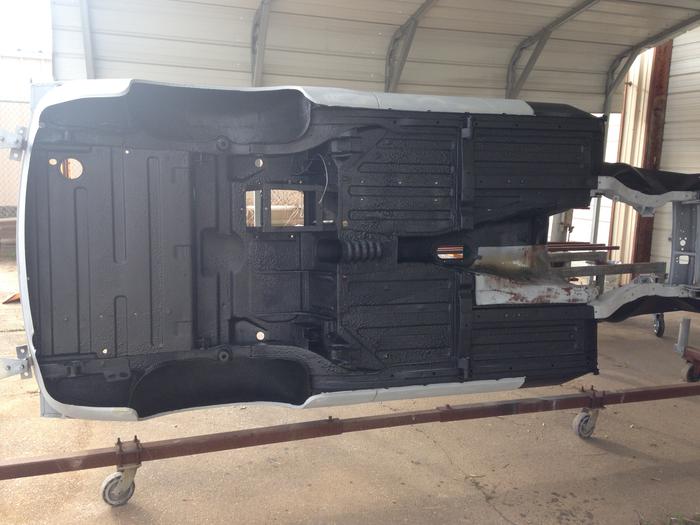

Bedlined Chassis

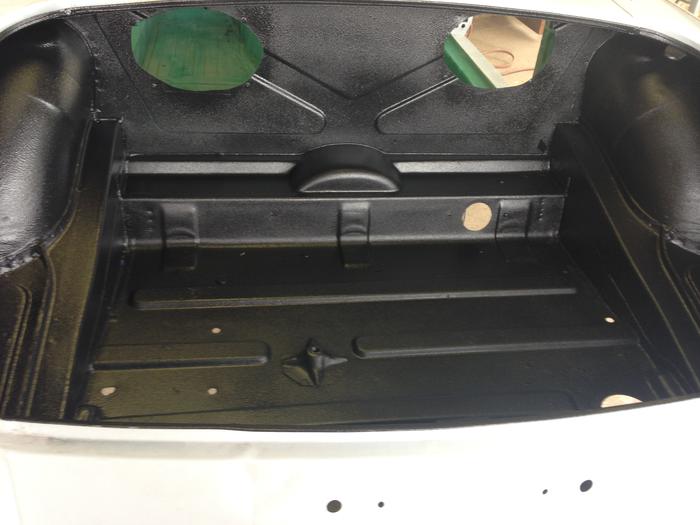

Bedlined Trunk Area

Bedlined Wheelwells

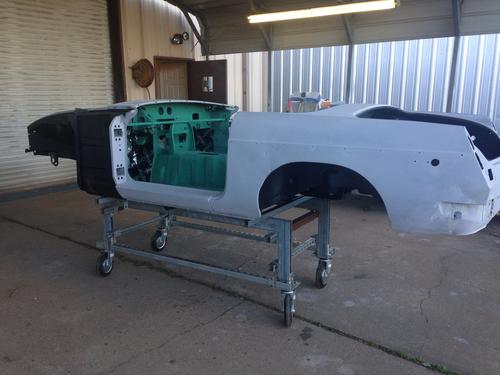

MGB Dolly 11.20.15

MGB Snug Top

Member Comments on Journal Entry: Sandblasting Complete, Now The Fun Begins ↵

Rated 7 out of 10 based on 1 ratings

2015-02-16 08:07:27 # 24006

Comment by Paul Williams

Rating: 7/10

Looking good Dale. I am soon to start blasting my BGT also although I will only be looking to do the engine bay and some parts of the chassis and underbody. I think I will DA the body as limited rust so not going all back to bare metal.What do you recommend for blasting? I was thinking glass bead or alum oxide to cut into the metal and remove as much rust as possible. I need to get a rotisserie!!!

2015-02-16 11:00:01 # 24009

Comment by Dale L.

Construction sand FINE is good and cheap. Glass beads is for engine parts.If you are just doing the engine bay you don't need a rotisserie. It just makes everything easier to get to.
